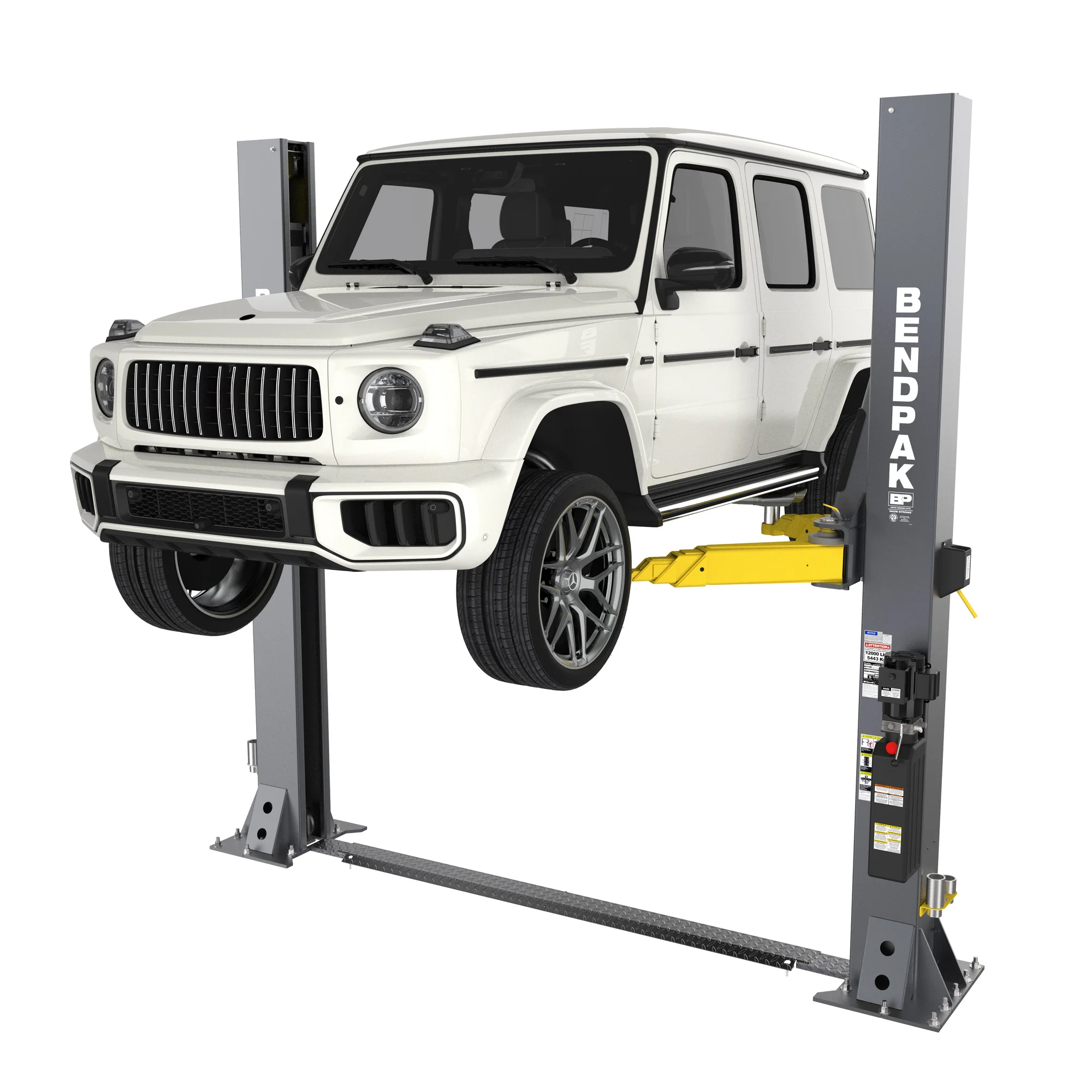

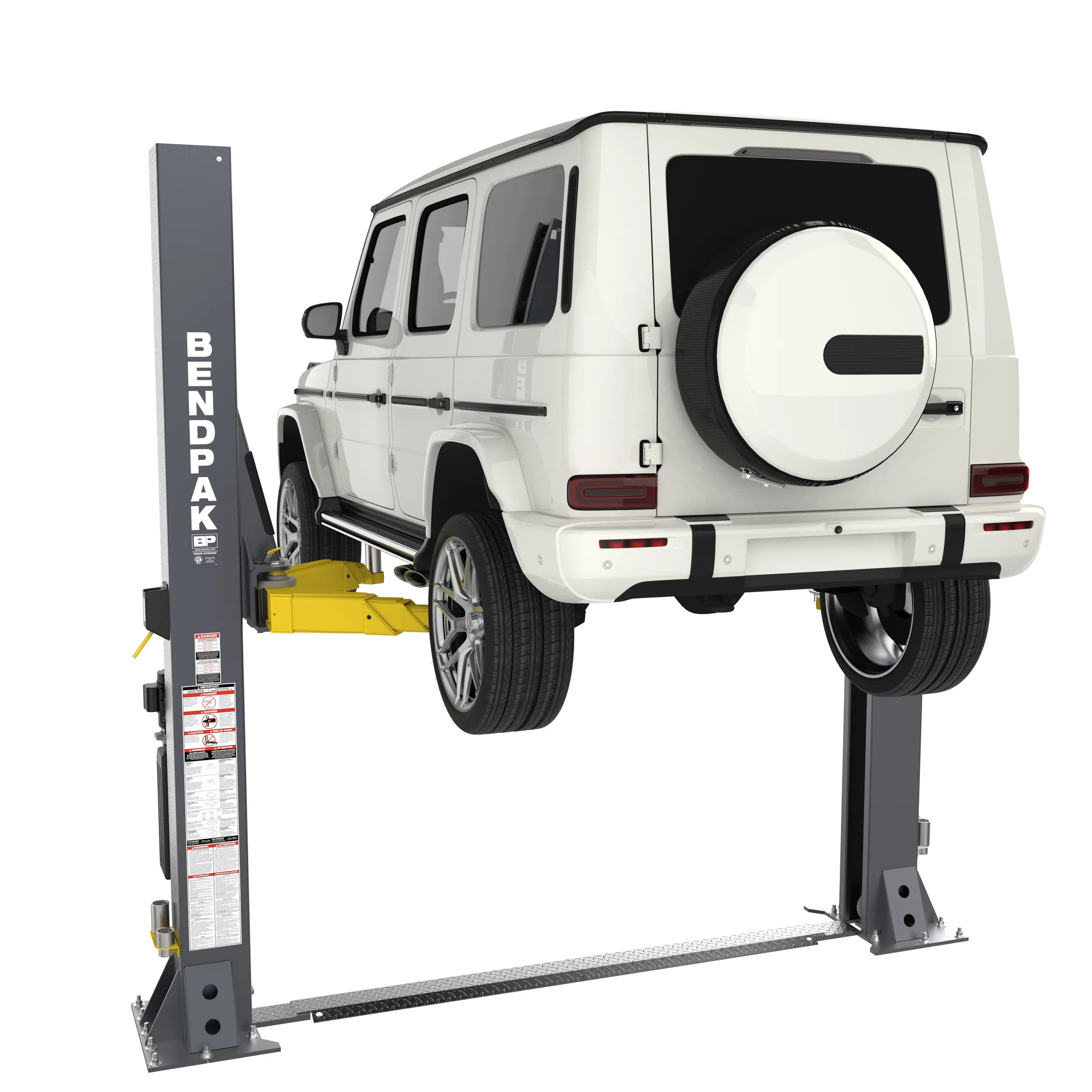

12,000-Lb. Capacity Open-Top Two-Post Car Lift – Low-Ceiling Floorplate Design

Upgrade your professional garage or service facility with this heavy-duty 12,000-lb. capacity two-post car lift, designed for shops that need substantial lifting power while working with limited ceiling height. The open-top design eliminates the traditional overhead beam, providing additional clearance for high-roof vehicles, work trucks, vans, SUVs, and other larger vehicles.

The floorplate design keeps hydraulic and equalizer lines protected while maintaining a clean and accessible work area. The lift features flexible Bi-Metric arms that allow both symmetric and asymmetric vehicle positioning, making it suitable for a wide range of vehicles and service applications.

With a 70-inch lifting rise, multiple safety-lock positions, automatic arm restraints, and included adapter coverage, this lift provides the strength and flexibility needed for professional automotive service, repairs, maintenance, and fleet work.

Key Features & Benefits

• 12,000-lb. lifting capacity for heavy-duty trucks, vans, SUVs, and commercial vehicles
• Open-top design provides additional overhead clearance in low-ceiling garages
• 70-inch lifting rise for convenient under-vehicle access
• Floorplate design protects hydraulic and equalizer lines

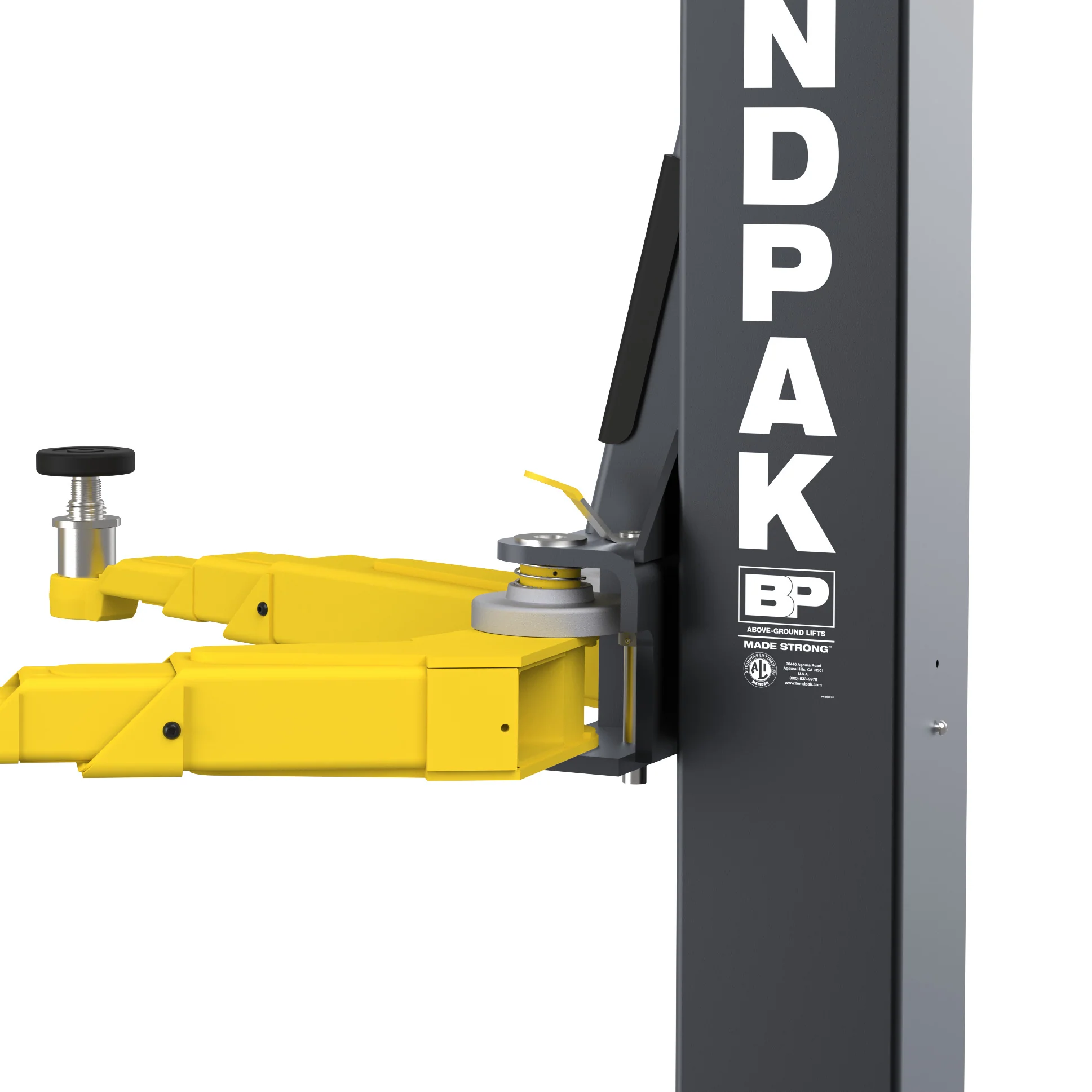

• Bi-Metric arms allow flexible symmetric or asymmetric vehicle positioning
• Automatic arm restraint system helps keep the lift arms securely positioned

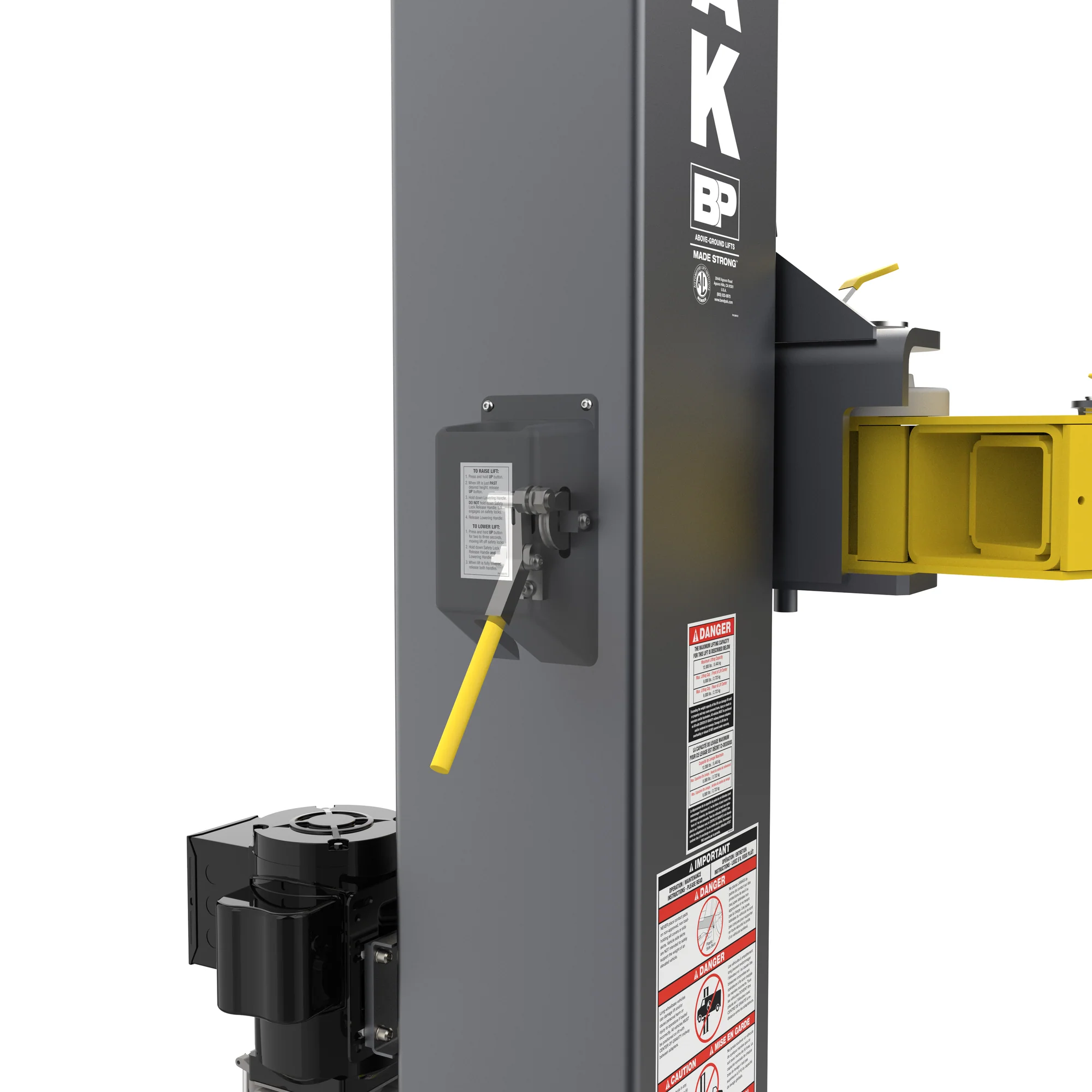

• Multiple safety-lock positions for controlled lifting and lowering
• Includes cradle pads and height adapters for different vehicle configurations
• 5 HP electric-hydraulic power unit
• Requires 208–230V, 60 Hz, single-phase power
• Designed for professional garages, repair shops, fleet facilities, dealerships, and service centers
• Heavy-duty construction for demanding automotive service applications

Specifications

• Lifting Capacity: 12,000 lbs.
• Maximum Lifting Height with Pad: 73.5 in.
• Minimum Lifting Height with Pad: 4.5 in.
• Lifting Rise: 70 in.
• Drive-Through Clearance: 102.25 in.
• Inside Column Width: 119.13 in.
• Overall Width: 155 in.
• Overall Height: 144.75 in.
• Power: 5 HP
• Electrical: 208–230V / 60 Hz / 1-Phase
• Shipping Weight: 2,738 lbs.
• Shipping Method: Flatbed
• Offload Requirement: Forklift

Important Installation Information

Professional installation is recommended. The buyer should verify that the installation location meets applicable concrete, electrical, building-code, and safety requirements before installation. A forklift is required for offloading the shipment.
