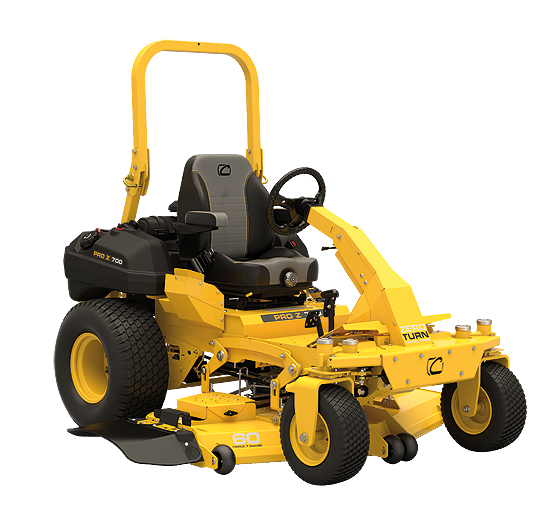

Cub Cadet Pro Z 760 S 53TIHTUVA50
$2,329.30
SET UP AND PREP FEES MAY APPLY
The Cub Cadet® PRO Z 760 S 60-in. 31 HP* Commercial Zero-Turn Lawn Mower With Synchro-Steer™ Technology features a triple 7-gauge fabricated steel cutting deck with top, bottom and side reinforcements. Category exclusive steering wheel control technology is designed to allow you to conquer slopes up to 20 degrees. Equipped with maintenance-free spindles and pulleys to deliver peak performance with limited downtime.
- 31 HP Kawasaki FX921v (999cc) engine and 12cc Hydro-Gear 4400 transmission
- 60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
- 3-Year / no hour limit warranty and/or 5-Year 1,200 hour warranty
Engine
- Engine Brand: Kawasaki
- Engine Model: FX921V
- Engine Displacement: 999cc
- Engine Output: 31 HP
- Fuel Tank Capacity: Twin 7.45 gal. tanks (14.9 gal. total) with electronic fuel gauge
Drive System
- Transmission: 12cc Hydro-Gear 4400
- Forward Speed: 12 mph
- Reverse Speed: 6 mph
Cutting Deck
- Deck Cutting Width: 60”
- Deck Material: fabricated 7ga. (.187”) steel shell
- Deck Engagement (PTO): electronic fingertip engagement pto
- Deck Construction: 7ga. top plate 7ga. bottom reinforcement ¼” rolled leading edge
- Spindle Construction: 8″ sealed cast aluminum housing (maintenance-free)
- Blade(s): Triple-blade / High-lift blade (standard) Marbain Blade
- Cutting Height Range: 1″ – 5″
- Anti-Scalping: 2 Front HD w/ Bushings & Grease Zerk
- Deck Positions: Foot pedal with spring assist 16 Positions
Chassis
- Frame: Fully welded, full-length 3/8 x 5″ laser cut steel / integrated tie-down slots
- Front Axle(s): 2″ x 3″ solid axle tube with ISO dampening suspension
- Front Tires: 16″ x 6.5″ – 8″ turf
- Rear Tires: 24″ x 12″ – 12″ (Turf Tread)
- Tire Tread: Turf Tread
- ROPS: 2″ x 2″ spring-latch tool-less foldable 3 position
- Bumper: 5/16″ Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
- Yokes: 1/2″ thick steel front yokes
Controls
- Seat: Cushion with seat belt
- Brakes: Hand-operated lever with integrated hydro pump release lever
- Steering Wheel Control: High Performance Steering Wheel with electronic power steering & Foot-pedal ControL
Comfort
- Arm Rests: padded arm rests
- Seat Suspension: High-back dial suspension with EVC cushion, ISO mounted base (lateral suspension)
- Seat Adjustment: angle back adjust and lumbar support
Dimensions
- Dimensions: L/W/H 86″ L x 62″ W x 52″ H
- Weight (approx.): 1562 lbs.
Additional Specifications
- Hour Meter: Standard electronic
- Discharge Chute: High-density, impact-resistant rubber
- Cup Holder: Intergrated into Side Pod
- Model Number: 53TIHTUVA50
Warranty
- Commercial Warranty:
- 3-Year / No Hour Limit Warranty and/or 5-Year 1,200 Hour
- AIR FILTER: KM-11013-7044
- PRE FILTER: KM-11013-7045
- OIL FILTER: KM-49065-0724
- FUEL FILTER: KM-49019-0027 OR 490-240-0001
- SPARK PLUG: KM-BPR5ES
- DECK BELT: 954-04319
- PTO BELT: 954-05128
- DRIVE BELT: 754P07148
- BLADES: 942-04415 OR 490-110-C163
- XTREME BLADE: 02005019P-X
- IGNITION KEY: 925-06908
- TRANS FILTER:
- TRANS FLUID:
- ENGINE OIL: 490-000-C044
