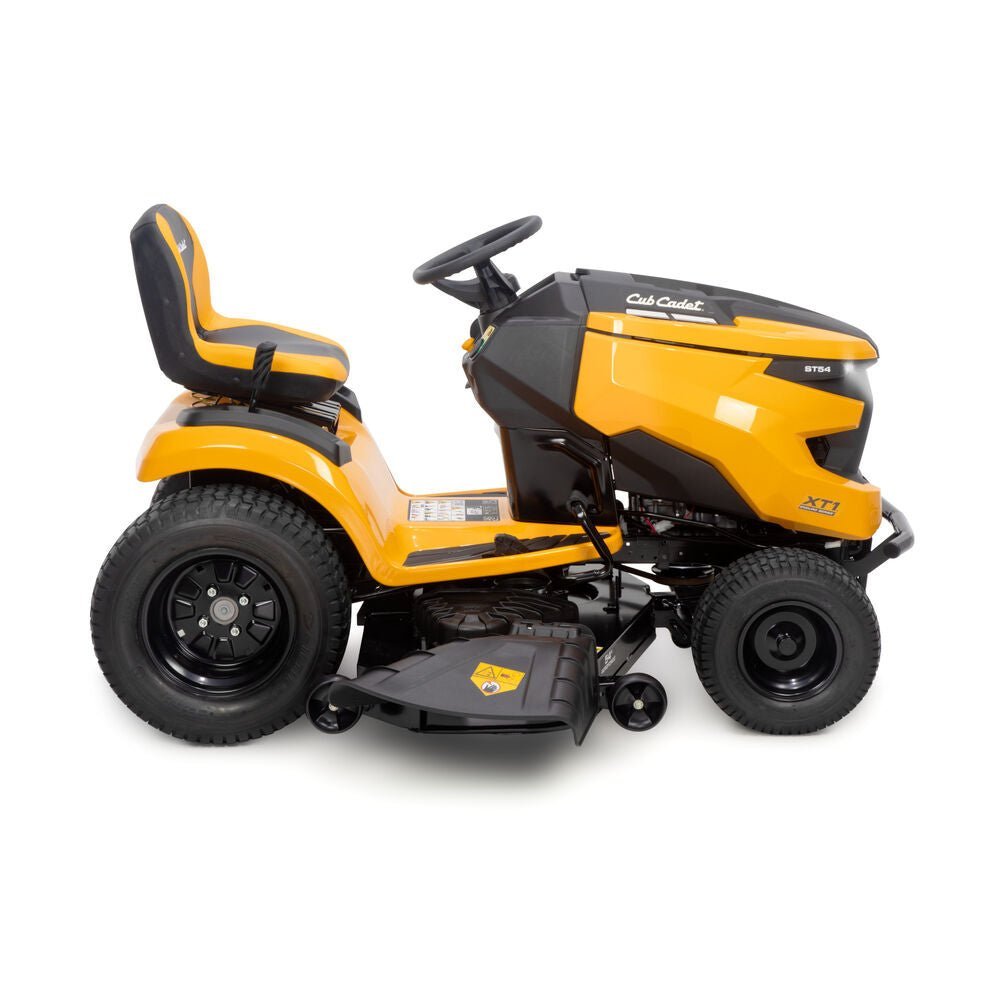

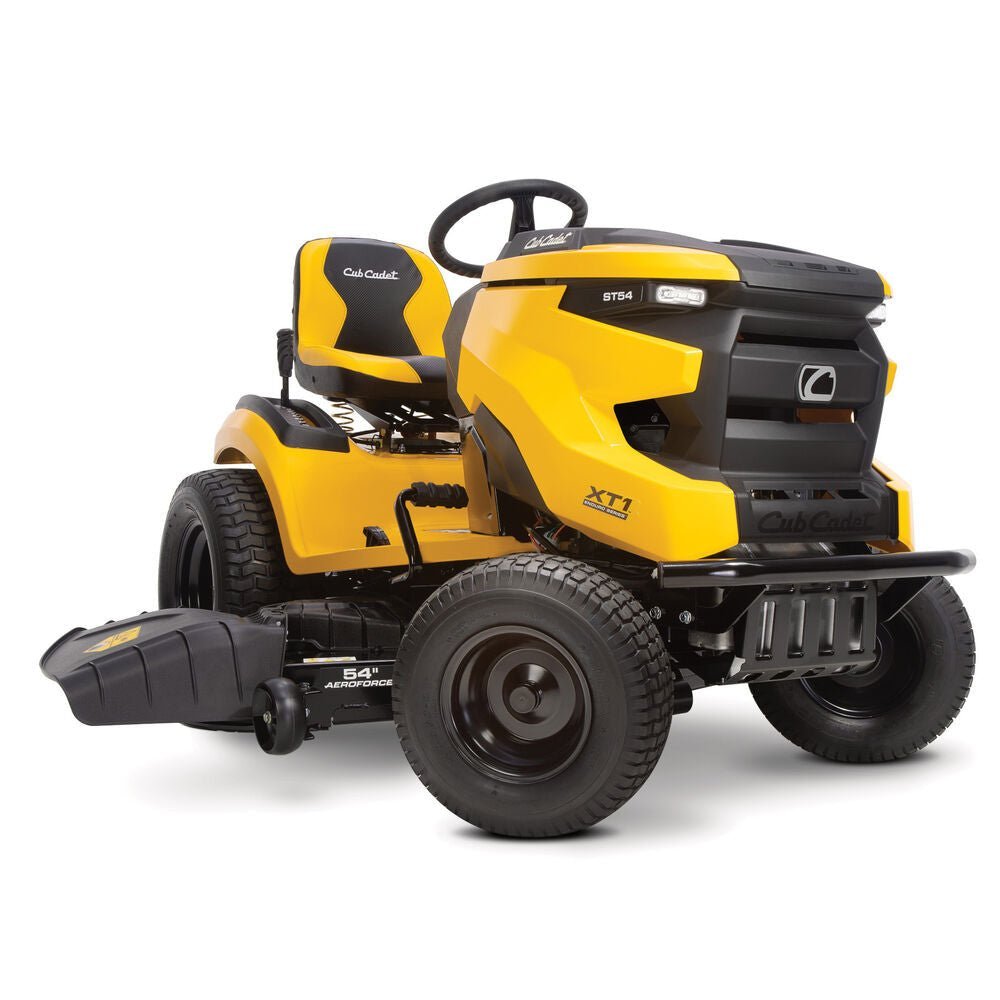

Cub Cadet XT1-ST 54 13AQA2TMA10
$1,179.30
SET UP AND PREP FEES MAY APPLY
- The Cub Cadet XT1 ST54 FAB is powered by a 24 hp KOHLER 7000 Series twin cylinder engine.
- 54″ fabricated deck, 11-gauge, triple-blade deck with AeroForce(TM) deck design that optimizes airflow and maximizes suction to reduce clumping during discharge and improves bagging performance while delivering the pristine Cub Cadet Signature Cut™.
- Optimized steering system for responsive handling gives a 16-inch turn radius a zero-turn feel.
- 3-year/no hour limit warranty (includes powertrain) and 5-year chassis and front axle unlimited hours/limited lifetime fabricated deck shell.
- Ideal for mowing up 2-4 acres of mostly flat terrain and a few obstacles.
Engine
- Engine Brand: Kohler®
- Engine Model: Professional-grade KT724
- Engine Displacement: 747cc
- Engine Output: 24 HP
- Starter Type: Electric
- Fuel Tank Capacity: 3 gal. easy fill, rustproof
- Cylinders/Material: Twin/Cast-iron sleeve
- Engine Start: Key
- Engine Oil Capacity: 2 qt.
- Lubrication: Fully pressurized, automotive-style oil pump w/ spin-on oil filter
- Charging System: Flywheel Alternator – 12 amp regulated
- Fuel Gauge: Fuel sight window
- Governor: Manual
- Choke: Choke-a-matic
- Air Filter: Dual element
- Oil Filter: Yes
- Battery: 210 cold crank amps AGM
Drive System
- Transmission: Hydrostatic, foot
- Forward Speed: 5.5 mph
- Reverse Speed: 3.1 mph
- Rear Axle: 3/4″ w/dual PM steel drive hubs
- Transmission Housing: Cast aluminum
- Transmission Type: Tuff Torq K46
- Engine to Transmission: Heavy-duty belt
Cutting Deck
- Deck Cutting Width: 54″
- Cutting Modes: Discharge/mulch/bagging
- Deck Wash: Patented SmartJet™ high-pressure deck washing system
- Deck Material: 11-gauge fabricated steel
- Deck Attach/Removal: QuickAttach™ (no tools required)
- Deck Engagement (PTO): Electronic fingertip engagement
- Deck Construction: Fabricated
- Spindle Construction: 3/4″ with steel cap and Triple Lip Sealed
- Blade(s): Triple Blade
- Deck Lift: Lever
- Cutting Height Range: 1″ – 4″
- Anti-Scalping; 2 Ball/2 Ball/Nose Roller
- Deck Positions: 12-position
Chassis
- Frame: defense system Fully robotically-welded frame with new e-coating corrosion
- Front Axle(s): Cast iron
- Turning Radius: 16″
- Front Tires: 16″ x 6.5″
- Rear Tires: 22″ x 9.5″
- Bumper: Single-tube
- Rear Tow Hitch: Included
- Corrosion Protection: E-coating
Controls
- Cruise Control: Soft touch engagement
- Handle: Optimized steering system, manual sector and pinion/16″
- Brakes: Automotive-style disc
- Steering: Control Manual sector and pinion
- Headlight(s): 2 – LED
- Display: Hour meter
Comfort
- Seat Type: 15″ high-back seat
- Seat Suspension: Seat spring
- Seat Adjustment: Lever
- Floor Mats: Traction Pad
Dimensions
- Weight (approx.): 520 lbs.
- Wheelbase: – 47″
Additional Specifications
- Mulch Kit: Optional
- Discharge Chute: Included
- Cup Holder: Included
- Operator Presence System: Included
- Bagger: Optional
- Model Number: 13AQA2CTMA10
Warranty
- Warranty: 3-year/unlimited hour warranty
- Frame Warranty: 5-year/unlimited hour warranty
- Front Axle Warranty: 5-year/unlimited hour warranty
- Deck Shell Warranty: Limited lifetime warranty
- AIR FILTER: 32 883 09-S1
- OIL FILTER: 12 050 01-S
- ENGINE OIL: 490-000-C044
- FUEL FILTER: 24 050 13-S
- TRANS FLUID: TT-187Q899000
- SPARK PLUG: 25 132 23-S RC12YC
- DECK BELT: 954-05025A
- DRIVE BELT: 954-05027B
- BLADE: 742P05086
- XTREME BLADE: 742P05086-X
- IGNITION KEY: 925-1745A
