Toro 77603 60″ TimeCutter Havoc MyRIDE Zero Turn

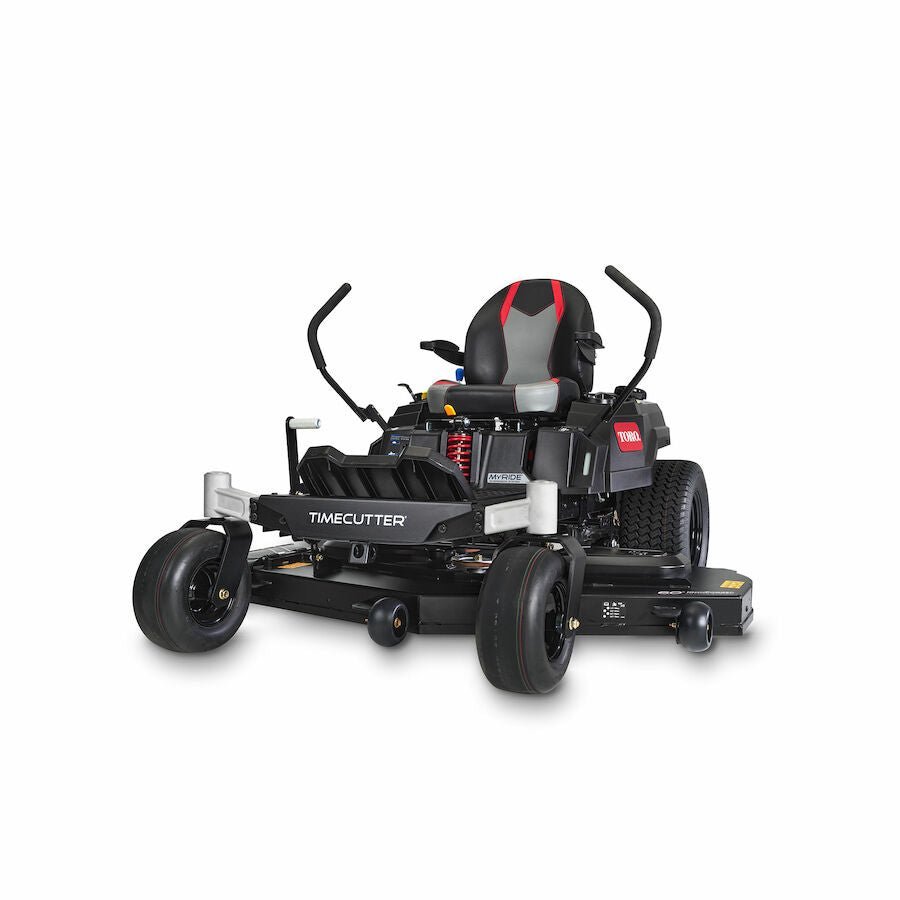

Toro 77603 60″ TimeCutter Havoc MyRIDE Zero Turn - Image 2

Toro 77603 60″ TimeCutter Havoc MyRIDE Zero Turn - Image 3

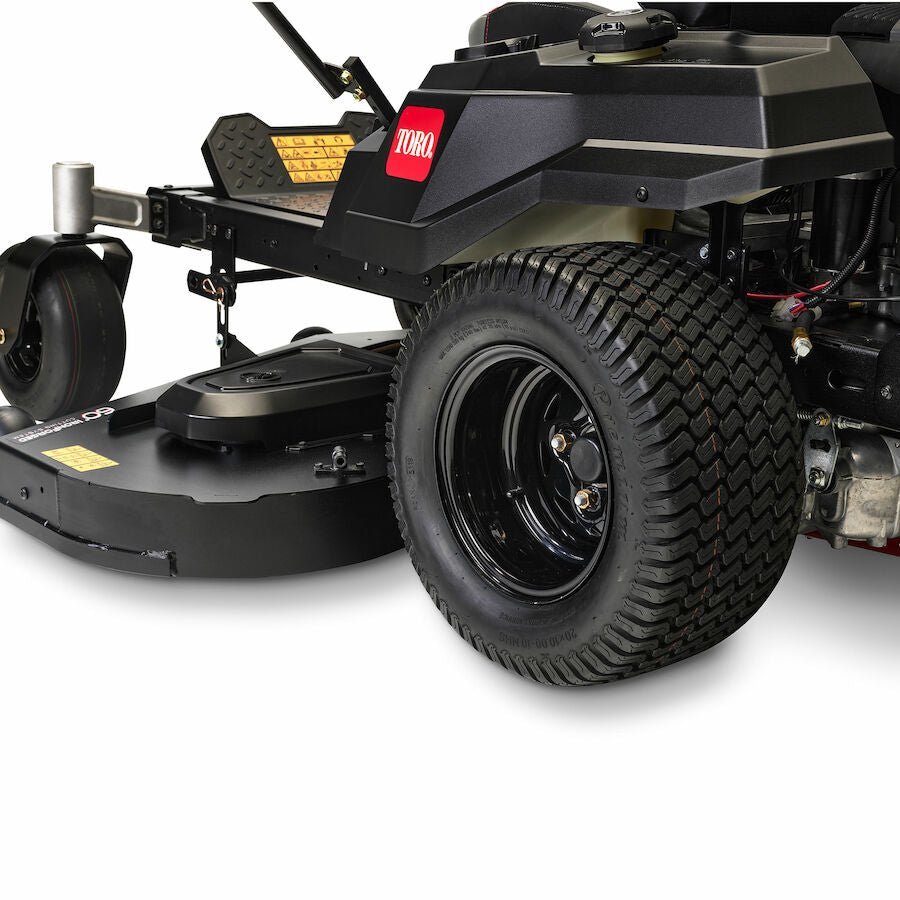

Toro 77603 60″ TimeCutter Havoc MyRIDE Zero Turn - Image 4

Toro 77603 60″ TimeCutter Havoc MyRIDE Zero Turn

Name: Toro 77603 60″ TimeCutter Havoc MyRIDE Zero Turn
SKU: 77603
Price: 2109.30 USD
Availability: InStock

+1 440-390-7403
Clearance Sale — Order Now, Do Not Miss Out! Ships Fast.

$2,109.30

Add to wishlist

SKU: 77603 Category: Zero Turn Mowers

Description
Reviews (0)

60″ TimeCutter Havoc MyRIDE Zero Turn Mower

Featuring MyRIDE® Suspension System

Overview

Get ready to wreak some HAVOC. This beast of a machine is designed to send an immediate message to your property and your neighbors, that you are not to be trifled with. The Havoc Edition is the largest TimeCutter ever made with features like a 60″ IronForged(TM) Deck, MyRide(R) Suspension system, and a 1-of-a-kind paint job. When you have the HAVOC anyone who sees you on this machine will know you’re serious about mowing, and you will do it whenever you please.

Specifications

Air Filter	Low Profile Air Cleaner (LPAC)
Anti Scalp Wheels	Standard
Armrests	Standard
Bagger Capacity	4.9 bushels
Blades	HI FLOW 20.5″ Black
Brake System	Electric Parking Brake – Internal
CARB Compliant	Not CARB Compliant
Carrier Frame	3.3 x 1.75 x 10 gauge
Caster Tires	13″ x 6.5″ x 6″ Pneumatic
Clutch	Electromagnetic
Comfort Platform	MyRIDE® Suspension System
Controls	Dual Wrap Around Levers
Cooling System	Air Cooled
Crankshaft	1″ w/Steel Protector
Cup Holder	Standard
Cutting Width	60 in.
Deck Design	10 gauge Fabricated IronForged™
Deck Material	10 Gauge Steel
Discharge Chute	Side
Drive System	5-Speed Transmission
Drive Tires	20″ x 10″ – 10″
Drive Type	Rear-Wheel Drive
Engine	24 hp Kohler KT735
Engine Brand	Kohler
Engine Displacement (cc)	725 cc
Engine Horsepower	24.0 hp
Foot Operated Height of Cut	Standard
Forward Ground/Transport Speed	Up to 7.0 mph
Frame	3.3 x 1.75 x 10 gauge
Fuel Capacity	3 gal.
Fuel Type	Gasoline
Greasable Bearings	Yes
Height of Cut	1.0 – 4.25 in.
Hitch Bracket	Standard
Hour Meter	Standard Hour Meter
Hydraulic Fluid	Synthetic
Number of Blades	3
Product Features	Cup Holder, Deck Washout Port, Foot Operated Height of Cut, Hitch Bracket, Hour Meter
Product Use	Residential
Recommended Oil Type	10W-30
Recycler Kit	Kit available
Shocks	1 Front Center / 2 Rear
Spark Plug Type	RFI Spark Plug
Spindle Bearings	Maintenance-free
Start Type	Electric, Key Start
Steering Controls	Dual-Action Single-Bail
Transmission	Dual Hydrostatic HG-ZT2800
Washout Port	Standard

DOWNLOAD PARTS CATALOG

Features

Neighbor Envy Inducing Paint Job

Aggressive paint job that says you don’t keep up with the Jones’, you are the Jones’.

MyRIDE® Suspension System

No more rocky rides. Save your body from the toughest terrain and avoid slow mowing speeds with the MyRIDE Suspension System. Enjoy a more comfortable ride, keeping you productive and feeling fresh.

60″ IronForged® Deck

Toro IronForged® fabricated deck ensures years of reliability and top performance.

Pro DNA

Commercial DNA courses through these machines’ veins with the same technology professionals depend on. Get a beautiful, professional-looking lawn.

Easy Height-of-Cut Adjustment

Easily clear unexpected obstacles without having to stop with the deck lift pedal.

Smart Speed® Technology

Take control over your mowing speed, while never sacrificing blade tip speed.

Toolless Belt Cover

Simply unlatch the belt cover and easily sweep away debris to prevent deck corrosion and belt wear.

Handcrafted Seat with Arm Rests

Ride in style with an 18″ handcrafted high-back seat with arm rests that provides the ultimate in padding and back support.

Wet Spray Blocking Fenders

Shield your engine from tire spray and avoid backsplash on you with protective tire fenders.

Cup Holder

Stay cool and hydrated with a built-in cup holder.

Accessories

20.5 Inch Hi-Flow Blade – 3 pack (Part # 115-9649-03P)

Toro 20.5 Inch OEM Hi-Flow blade. This sharp replacement Hi-Flow lawn mower blade provides a crisp, clean cut time after time. You can count on the quality and reliability of this Toro replacement Hi-Flow lawn mower blade. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

TimeCutter LED Light Kit (Part # 140-2056)

The LED Light kit illuminates your mowing area during lowlight conditions and making moving easier and more efficient. This LED Light kit mounts to Toro Time Cutter models and is a genuine Toro LED Light Kit. The kit includes hardware, wire harness and instructions.
